SERIE TSI

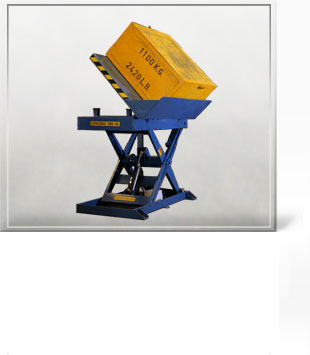

Similar to our TS model, this lift includes a tilting accessory for loading.  When for the sake of safety lifting and tilting operations cannot be executed simultaneously, this model is very useful, such as to pour loads from one container into another.



All you need to do is push a button to activate the hydraulic power pistons. It is also equipped with accessories that allow safe dumping safely.



These models are manufactured to work with loads from 500 Kg. up to 5000 Kg. and may be customized to tilt 45, 60 and 90 degrees.



Accessories:

• Foot Control (see image)
• Safety skirt (see image)
• Dumping Flap (see image)









MODEL		Capacity Kg.	Width cms (A)	Large cms (L)	Hmax cms (B)	Hmin cms (C)	Travel cms	HP	Weight Kg.
TSI-500-120-45º		500	120	120	120	55	65	1	266
TSI-500-120-60º		500	120	120	120	55	65	1	266
TSI-500-120-90º		500	120	120	120	55	65	1	266
TSI-1000-120-45º		1000	120	120	120	55	65	1	266
TSI-1000-120-60º		1000	120	120	120	55	65	1	266
TSI-1000-120-90º		1000	120	120	120	55	65	1	266
TSI-2000-120-45º		2000	120	120	120	60	60	2	232
TSI-2000-120-60º		2000	120	120	120	60	60	2	232
TSI-2000-120-90º		2000	120	120	120	60	60	2	232
TSI-3000-120-45º	*	3000	120	120	120	60	60	3	350
TSI-3000-120-60º	*	3000	120	120	120	60	60	3	350
TSI-3000-120-90º	*	3000	120	120	120	60	60	3	350
TSI-4000-120-45º	*	4000	120	120	120	60	60	3	365
TSI-4000-120-60º	*	4000	120	120	120	60	60	3	365
TSI-4000-120-90º	*	4000	120	120	120	60	60	3	365
TSI-5000-120-45º	*	5000	120	120	120	60	60	5	385
TSI-5000-120-60º	*	5000	120	120	120	60	60	5	385
TSI-5000-120-90º	*	5000	120	120	120	60	60	5	385
TSI-500-150-45º	*	500	150	150	150	55	95	1	315
TSI-500-150-60º	*	500	150	150	150	55	95	1	315
TSI-500-150-90º	*	500	150	150	150	55	95	1	315
TSI-1000-150-45º	*	1000	150	150	150	55	95	1	355
TSI-1000-150-60º	*	1000	150	150	150	55	95	1	355
TSI-1000-150-90º	*	1000	150	150	150	55	95	1	355
TSI-2000-150-45º	*	2000	150	150	150	60	90	2	375
TSI-2000-150-60º	*	2000	150	150	150	60	90	2	375
TSI-2000-150-90º	*	2000	150	150	150	60	90	2	375
TSI-3000-150-45º	*	3000	150	150	150	60	90	3	425
TSI-3000-150-60º	*	3000	150	150	150	60	90	3	425
TSI-3000-150-90º	*	3000	150	150	150	60	90	3	425
TSI-4000-150-45º	*	4000	150	150	150	60	90	3	515
TSI-4000-150-60º	*	4000	150	150	150	60	90	3	515
TSI-4000-150-90º	*	4000	150	150	150	60	90	3	515
TSI-5000-150-45º	*	5000	150	150	150	60	90	5	525
TSI-5000-150-60º	*	5000	150	150	150	60	90	5	525
TSI-5000-150-90º	*	5000	150	150	150	60	90	5	525













































































































































* External Power Unit
