PRODUCTS > TSA SERIES



.

TSA SERIES

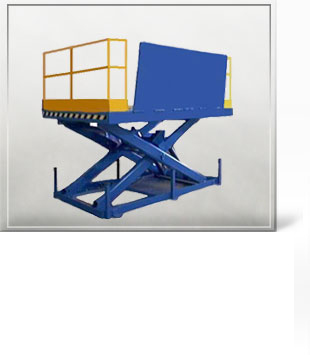

This TSA scissor lift includes a safety handrail and hinged access ramp so employees can work on it safely.



The units are manufactured so operators can work on the lift safely, and are designed to prevent the lift from jolt the operator.



Accessories:

• Foot Control (see image)
• External Unit (see image)



























MODEL		Capacity Kg.	Width cms (A)	Large cms (L)	Hmax cms (B)	Hmin cms (C)	Travel cms	HP	Hydraulic Cylinders	Weight Kg.
TS-1000-160		1000	120	200	160	32	128	2	1	560
TS-2000-160		2000	120	200	160	40	120	2	2	590
TS-3000-160	*	3000	120	200	160	40	120	3	2	650
TS-4000-160	*	4000	120	200	160	40	120	5	2	680
TS-5000-160	*	5000	120	200	160	40	120	5	2	720
TS-1000-185		1000	120	220	185	35	150	2	1	600
TS-2000-185		2000	120	220	185	40	145	2	2	630
TS-3000-185	*	3000	120	220	185	40	145	3	2	690
TS-4000-185	*	4000	120	220	185	40	145	5	2	730
TS-5000-185	*	5000	120	220	185	40	145	5	2	750
TS-1000-200		1000	122	244	215	35	180	2	1	700
TS-2000-200		2000	122	244	215	40	175	2	2	740
TS-3000-200	*	3000	122	244	215	40	175	3	2	750
TS-4000-200	*	4000	122	244	215	40	175	5	2	770
TS-5000-200	*	5000	122	244	215	40	175	5	3	790
TS-1000-215		1000	122	244		35	180	2	1	700
TS-2000-215		2000	122	244	215	40	175	2	2	740
TS-3000-215	*	3000	122	244	215	40	175	3	2	750
TS-4000-215	*	4000	122	244	215	40	175	5	2	770
TS-5000-215	*	5000	122	244	215	40	175	5	3	790
TS-1000-245		1000	150		245	35	210	2	1	710
TS-2000-245		2000	150		245	40	205	2	2	755
TS-3000-245	*	3000	150	275	245	40	205	3	2	760
TS-4000-245	*	4000	150	275	245	45	200	5	3	780
TS-5000-245	*	5000	150	275	245	45	200	5	3	808























































































* External Power Unit
