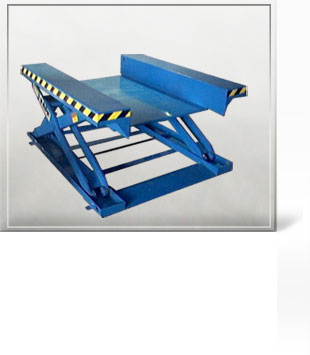

NP SERIES
This model features the ability to drop down to almost floor level, preventing the need to dig pits.
The bottom of the lift stops a few centimeters from the floor on account of reinforcements installed to support the load, and allows the use of access ramps. Our model can support up to 2,000 Kg. loads.
This model is ideal for unloading and displacing materials from one floor to next. It’s very easy to operate.
Accessories:
- Foot Control (see image)
| MODEL | Capacity Kg. |
Width cms (A) |
Large cms (L) |
Hmax cms (B) |
Hmin cms (C) |
Travel cms |
HP | Hydraulic Cylinders |
Weigth Kg. |
|
|---|---|---|---|---|---|---|---|---|---|---|
| NP-500-90 | * |
500 |
90 |
120 |
90 |
0 |
90 |
1 |
2 |
420 |
NP-1000-90 |
* |
1000 |
90 |
120 |
90 |
0 |
90 |
2 |
2 |
445 |
NP-2000-90 |
* |
2000 |
90 |
120 |
90 |
0 |
90 |
2 |
2 |
460 |
| NP-500-120 | * |
500 |
100 |
150 |
120 |
0 |
120 |
1 |
2 |
495 |
NP-1000-120 |
* |
1000 |
100 |
150 |
120 |
0 |
120 |
2 |
2 |
520 |
NP-2000-120 |
* |
2000 |
100 |
150 |
120 |
0 |
120 |
2 |
2 |
535 |
| NP-500-160 | * |
500 |
120 |
200 |
160 |
0 |
160 |
1 |
2 |
745 |
NP-1000-160 |
* |
1000 |
120 |
200 |
160 |
0 |
160 |
2 |
2 |
770 |
NP-2000-160 |
* |
2000 |
120 | 200 |
160 |
0 |
160 |
2 |
2 |
795 |
* External Power Unit
