I SERIES
This is our tilting model. All you need to do is push one button to activate the hydraulic power pistons; once the necessary precautions are taken for an efficient, safe process.
It handles heavy loads that require tilting or displacement during the process, prevents jerking that might be hazardous for employees and the load itself.
Our standard models are manufactured for 45, 60 and 90-degree tilts and 500 – 5000-Kg loads, but we can manufacture models with capacities of up to 20,000-Kg and a 90-degree tilt.
Accessories:
- Foot Control (see image)

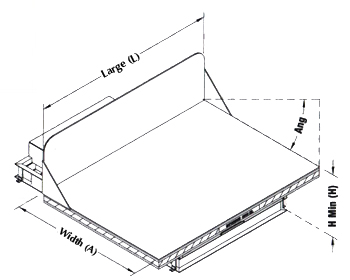

| MODEL | Capacity Kg. |
Width cms (A) |
Large cms (L) |
Hmin cms (C) |
HP | Hydraulic Cylinders |
Weight Kg. |
|
|---|---|---|---|---|---|---|---|---|
| I-500-45º | 500 |
120 | 120 | 25 | 1 | 1 | 300 | |
| I-500-60º | 500 |
120 | 120 | 25 | 1 | 1 | 300 | |
| I-500-90º | 500 |
120 | 120 | 25 | 1 | 1 | 300 | |
| - | ||||||||
| I-1000-45º | 1000 |
120 | 120 | 25 | 1 | 2 | 320 | |
| I-1000-60º | 1000 |
120 | 120 | 25 | 1 | 2 | 320 | |
| I-1000-90º | 1000 |
120 | 120 | 25 | 1 | 2 | 320 | |
| I-2000-45º | 2000 |
120 | 120 | 25 | 2 | 2 | 340 | |
| I-2000-60º | 2000 |
120 | 120 | 25 | 2 | 2 | 340 | |
| I-2000-90º | 2000 |
120 | 120 | 25 | 2 | 2 | 340 | |
| I-3000-45º | * | 3000 |
120 | 120 | 38 | 3 | 3 | 380 |
| I-3000-60º | * | 3000 |
120 | 120 | 38 | 3 | 3 | 380 |
| I-3000-90º | * | 3000 |
120 | 120 | 38 | 3 | 3 | 380 |
| I-4000-45º | * | 4000 |
120 | 120 | 38 | 5 | 2 | 400 |
| I-4000-60º | * | 4000 |
120 | 120 | 38 | 5 | 2 | 400 |
| I-4000-90º | * | 4000 |
120 | 120 | 38 | 5 | 2 | 400 |
| I-5000-45º | * | 5000 |
120 | 120 | 38 | 5 | 2 | 420 |
| I-5000-60º | * | 5000 |
120 | 120 | 38 | 5 | 2 | 420 |
| I-5000-90º | * | 5000 |
120 | 120 | 38 | 5 | 2 | 420 |
* External Power Unit
