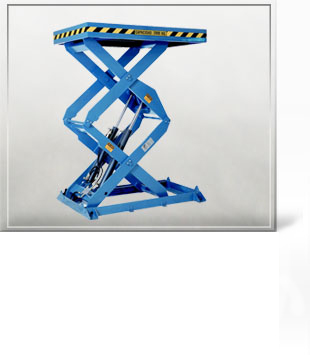

TD SERIES
These machines are designed for high reach in small areas. The series is ideal to lift loads between floors with a high stability and safety.
The double-scissor lift has the benefit of reaching higher than single-scissor models. Its reinforced construction allows safe reach of high places and stability for optimal performance with 500 Kg-3000 Kg loads and 90 - 390 cm heights.
Accessories:

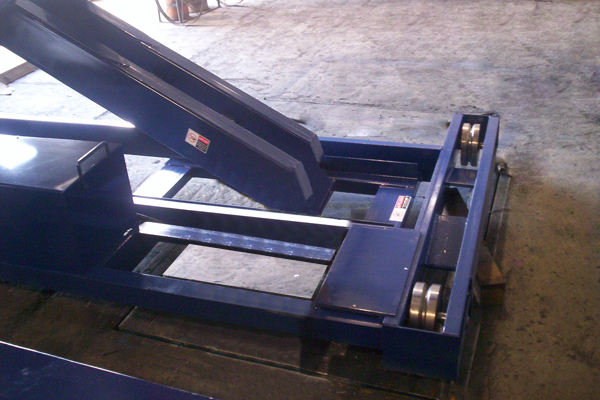

- Weels(see image)

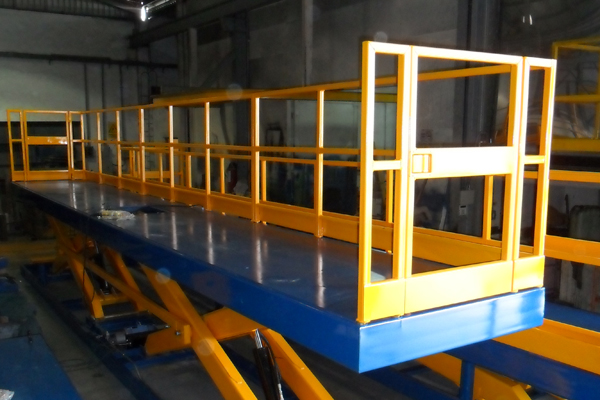

- Safety Handrail (see image)

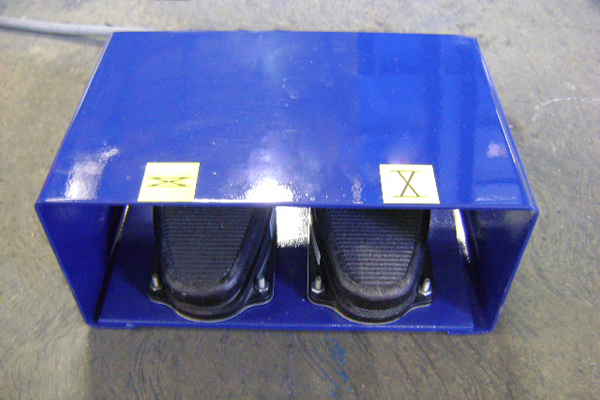

- Foot Control (see image)

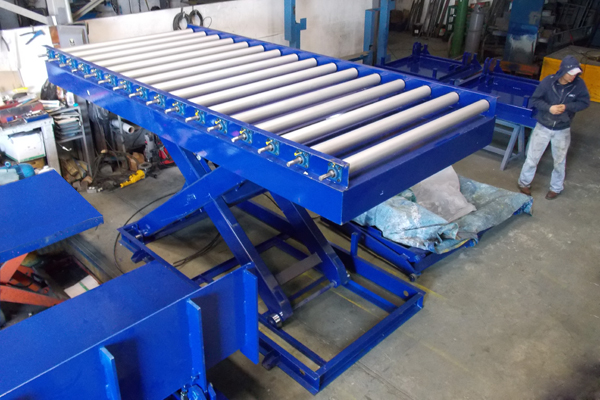

- Conveying Rollers (see image)

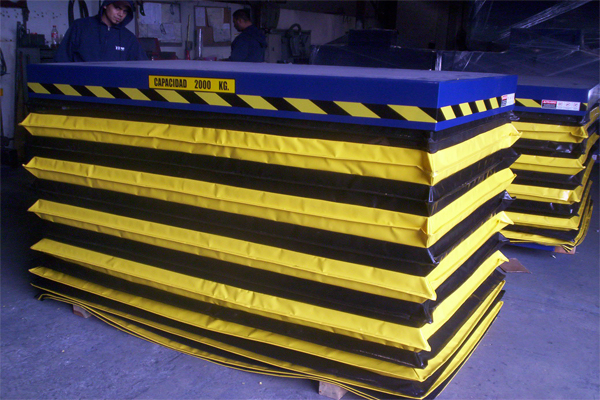

- Safety skirt (see image)
- Access Ramp (see image)

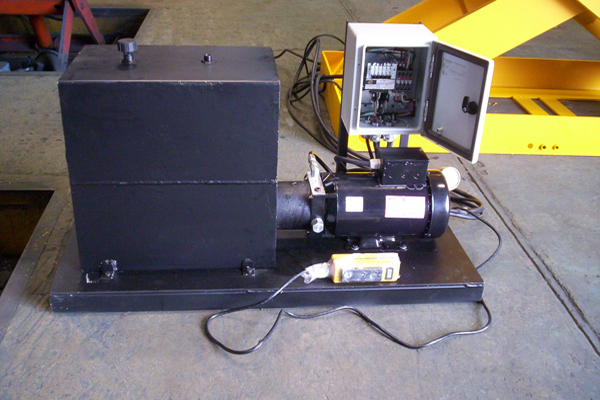

- External Unit (see image)
- Rotary Cover (see image)

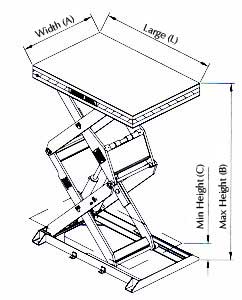

MODEL Capacity
Kg.Width
cms (A)Large
cms (L)
Hmax
cms (B)
Hmin
cms (C)
Travel
cms
HP Hydraulic
Cylinders
Weight
Kg.
TD-500-90 * 500 60 65 90 20 70 1 1 100 TD-1000-90 * 1000 60 65 90 20 70 1 1 130 TD-2000-90 * 2000 65 65 90 25 65 2 2 150 TD-500-110 * 500 70 80 110 25 85 1 1 150 TD-1000-110 * 1000 70 80 110 25 85 1 1 180 TD-2000-110 * 2000 75 80 110 30 80 2 2 200 TD-500-130 * 500 80 90 130 25 105 1 1 160 TD-1000-130 * 1000 80 90 130 25 105 2 1 190 TD-2000-130 * 2000 80 90 130 30 100 2 2 230 TD-500-150 * 500 80 100 150 25 125 1 1 200 TD-1000-150 * 1000 80 100 150 30 120 2 1 230 TD-2000-150 * 2000 80 100 150 30 120 2 2 260 TD-500-170 500 90 110 170 35 135 1 1 230 TD-1000-170 1000 90 110 170 40 130 2 1 270 TD-2000-170 2000 90 110 170 40 130 2 2 300 TD-500-190 500 100 120 190 35 155 1 1 280 TD-1000-190 1000 100 120 190 40 150 2 1 320 TD-2000-190 2000 100 120 190 40 150 2 2 350 TD-500-210 500 100 130 210 35 175 1 1 330 TD-1000-210 1000 100 130 210 40 170 2 1 360 TD-2000-210 2000 100 130 210 40 170 2 2 400 TD-500-230 500 100 140 230 40 190 1 1 400 TD-1000-230 1000 100 140 230 40 190 2 1 440 TD-2000-230 2000 100 140 230 45 185 2 2 460 TD-500-250 500 100 150 250 40 210 1 1 485 TD-1000-250 1000 100 150 250 45 205 2 1 520 TD-2000-250 2000 100 150 250 45 205 2 2 550 TD-500-270 500 120 160 270 40 230 1 1 500 TD-1000-270 1000 120 160 270 45 225 2 2 560 TD-2000-270 2000 120 160 270 45 225 2 2 600 TD-500-290 500 120 170 290 45 245 1 1 550 TD-1000-290 1000 120 170 290 45 245 2 2 610 TD-2000-290 2000 120 170 290 45 245 2 2 650 TD-500-310 500 120 180 310 45 265 1 1 630 TD-1000-310 1000 120 180 310 45 265 2 2 670 TD-2000-310 2000 120 180 310 45 265 2 2 700 TD-500-330 500 120 200 330 45 285 2 1 690 TD-1000-330 1000 120 200 330 45 285 2 2 730 TD-2000-330 * 2000 120 200 330 45 285 3 2 750 TD-500-350 500 150 215 350 50 300 2 1 780 TD-1000-350 1000 150 215 350 50 300 2 2 800 TD-2000-350 * 2000 150 215 350 50 300 3 2 840 TD-500-370 500 150 230 370 55 315 2 1 800 TD-1000-370 1000 150 230 370 55 315 2 2 850 TD-2000-370 * 2000 150 230 370 55 315 3 2 880 TD-500-390 500 150 250 390 55 335 2 1 860 TD-1000-390 1000 150 250 390 60 330 2 2 910 TD-2000-390 * 2000 150 250 390 60 330 3 2 950
* External Power Unit
