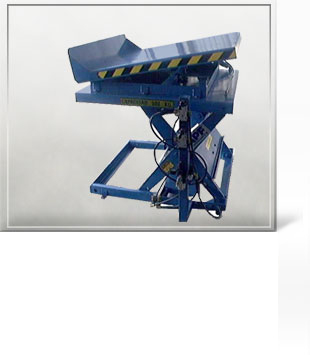

TNI SERIES
This series is also driven by a pneumatic system and can tilt up to 45 degrees. As both lifting and tilting are done pneumatically, it doesn’t need a power unit and is ideal for places that require high cleanliness and low noise.
For safety reasons, lifting and tilting are NOT executed simultaneously. This series includes silencers that prevent air exhaust noise.
Its maintenance requirements are very low, as it does not have a power unit.
Accessories:
• Wheels
• Brake
• Push handrail
• Safety skirt
• Pedestal
• Dumping flap
• Foot control valve
- Weels(see image)
- Brake (see image)
- Push Handrail (see image)
- Safety Skirt (see image)
- Pedestal (see image)
- Dumping Flap (see image)
- Foot Control Valve (see image)

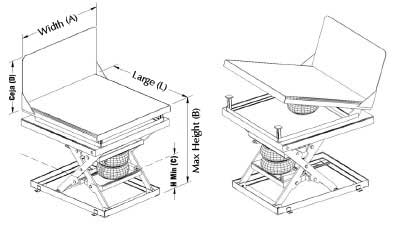

| MODEL | Capacity Kg. |
Width cms (A) |
Large cms (L) |
Hmax cms (B) |
Hmin cms (C) |
Travel cms |
Hydraulic Cylinders |
Weight Kg. |
|---|---|---|---|---|---|---|---|---|
| TNI-500-110-45° | 500 | 120 | 120 | 110 | 45 | 65 | 100 | 216 |
| TNI-1000-110-45° | 1000 | 120 | 120 | 110 | 45 | 65 | 100 | 216 |
| TNI-2000-110-45° | 2000 | 120 | 120 | 110 | 50 | 60 | 100 | 280 |
| TNI-500-140-45° | 500 | 120 | 150 | 140 | 45 | 95 | 100 | 265 |
| TNI-1000-140-45° | 1000 | 120 | 150 | 140 | 45 | 95 | 100 | 305 |
| TNI-2000-140-45° | 2000 | 120 | 150 | 140 | 50 | 90 | 100 | 325 |
| TNI-500-160-45° | 500 | 120 | 180 | 160 | 45 | 115 | 100 | 285 |
| TNI-1000-160-45° | 1000 | 120 | 180 | 160 | 45 | 115 | 100 | 325 |
| TNI-2000-160-45° | 2000 | 120 | 180 | 160 | 50 | 110 | 100 | 345 |
