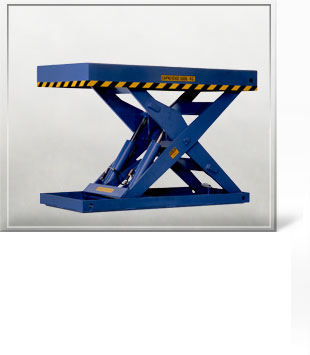

SERIE TS

The TS model is the best selling APF lift, as it allows a wider range of load size and weight options, hoisting loads as heavy as 20 tons with
a high stability. It can fit into a pit or operate at floor level in manufacturing lines, maintenance areas, unloading material, etc. Provides the benefits you need to improve productivity and operator performance.



Accessories:

• Weels(see image)
• Brake (see image)

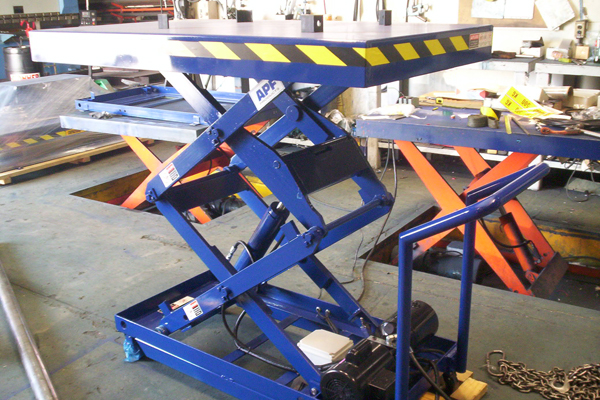

• Push Handrail (see image)
• Safety Handrail (see image)
• Foot Control (see image)
• Conveying Rollers (see image)
• Safety skirt (see image)
• Access Ramp (see image)
• External Unit (see image)
• Rotary Cover (see image)

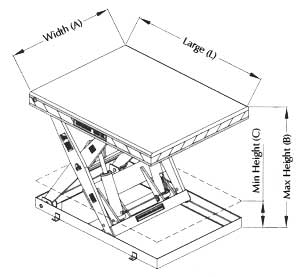

MODEL		Capacity Kg.	Width cms (A)	Large cms (L)	Hmax cms (B)	Hmin cms (C)	Travel cms	HP	Hydraulic Cylinders	Weight Kg.
TS-500-90		500	90	120	90	25	65	1	1	241
TS-1000-90		1000	90	120	90	25	65	2	1	241
TS-2000-90		2000	90	120	90	30	60	2	2	307
TS-3000-90		3000	90	120	90	30	60	2	2	325
TS-4000-90	*	4000	90	120	90	30	60	3	2	340
TS-5000-90	*	5000	90	120	90	30	60	5	2	360
TS-500-120		500	100	150	120	25	95	1	1	290
TS-1000-120		1000	100	150	120	25	95	1	1	330
TS-2000-120		2000	100	150	120	30	90	2	2	350
TS-3000-120		3000	100	150	120	30	90	2	2	400
TS-4000-120	*	4000	100	150	120	30	90	3	2	490
TS-5000-120	*	5000	100	150	120	30	90	5	2	500
TS-500-140		500	100	180	140	25	115	1	1	310
TS-1000-140		1000	100	180	140	25	115	2	1	350
TS-2000-140		2000	100	180	140	30	110	2	2	350
TS-3000-140		3000	100	180	140	30	110	2	2	420
TS-4000-140	*	4000	100	180	140	35	110	3	2	510
TS-5000-140	*	5000	100	180	140	35	110	5	2	520
TS-500-160		500	120	200	160	32	128	1	1	530
TS-1000-160		1000	120	200	160	32	128	2	1	560
TS-2000-160		2000	120	200	160	40	120	2	2	590
TS-3000-160	*	3000	120	200	160	40	120	3	2	650
TS-4000-160	*	4000	120	200	160	40	120	5	2	680
TS-5000-160	*	5000	120	200	160	40	120	5	2	720
TS-500-185		500	120	220	185	35	150	1	1	550
TS-1000-185		1000	120	220	185	35	150	2	1	600
TS-2000-185		2000	120	220	185	40	145	2	2	630
TS-3000-185	*	3000	120	220	185	40	145	3	2	690
TS-4000-185	*	4000	120	220	185	40	145	5	2	730
TS-5000-185	*	5000	120	220	185	40	145	5	2	750
TS-500-200		500	122	244	215	35	180	1	1	650
TS-1000-200		1000	122	244	215	35	180	2	1	700
TS-2000-200		2000	122	244	215	40	175	2	2	740
TS-3000-200	*	3000	122	244	215	40	175	3	2	750
TS-4000-200	*	4000	122	244	215	40	175	5	2	770
TS-5000-200	*	5000	122	244	215	40	175	5	3	790
TS-500-215		500	122	244	215	35	180	1	1	650
TS-1000-215		1000	122	244	215	35	180	2	1	700
TS-2000-215		2000	122	244	215	40	175	2	2	740
TS-3000-215	*	3000	122	244	215	40	175	3	2	750
TS-4000-215	*	4000	122	244	215	40	175	5	2	770
TS-5000-215	*	5000	122	244	215	40	175	5	3	790
TS-500-245		500	150	275	245	35	210	1	1	677
TS-1000-245		1000	150	275	245	35	210	2	1	710
TS-2000-245		2000	150	275	245	40	205	2	2	755
TS-3000-245	*	3000	150	275	245	40	205	3	2	760
TS-4000-245	*	4000	150	275	245	45	200	5	3	780
TS-5000-245	*	5000	150	275	245	45	200	5	3	808
TS-500-245		500	150	275	245	35	210	1	1	677
TS-1000-245		1000	150	275	245	35	210	2	1	710
TS-2000-245		2000	150	275	245	40	205	2	2	755
TS-3000-245	*	3000	150	275	245	40	205	3	2	760
TS-4000-245	*	4000	150	275	245	45	200	5	3	780
TS-5000-245	*	5000	150	275	245	45	200	5	3	808
TS-5000-245	*	5000	150	275	245	45	200	5	3	808











































































































































































* External Power Unit
